Quick Takeaways:
- The oil filter housing gasket is a documented oil leak source on BMW N52, N54, and N55 engines — often the vehicle’s first significant leak.
- A leaking oil filter housing gasket produces an oil drip under the front of the engine and a burning oil smell when the engine is warm.
- The plastic oil filter housing itself can crack with age and Green Bay’s temperature extremes, requiring full housing replacement rather than just a gasket.
- Oil from this leak drips onto the drive belt and alternator below, causing secondary damage if not addressed promptly.
- Dell’s Service Center at 840 VanDerPerren Way provides complete BMW oil filter housing inspection and repair with OEM-quality components.
Green Bay BMW owners driving the US-41 corridor from De Pere into downtown, navigating Lambeau Field game days on Lombardi Avenue, or covering the I-43 run toward Allouez and Bellevue have enough variables in their commute without an oil leak adding to them. The oil filter housing gasket is one of the most common first leaks on BMW’s N52, N54, and N55 inline-six engines — and Green Bay’s climate accelerates the timeline. The thermal swing from overnight lows in the single digits to afternoon highs in the 40s during Wisconsin’s extended shoulder seasons puts rubber gaskets through more expansion-contraction cycles per year than almost any other market in the country. Dell’s Service Center has been at 840 VanDerPerren Way since 1969 and handles this repair regularly — correctly, the first time.
Where is the BMW oil filter housing and why does its gasket fail?

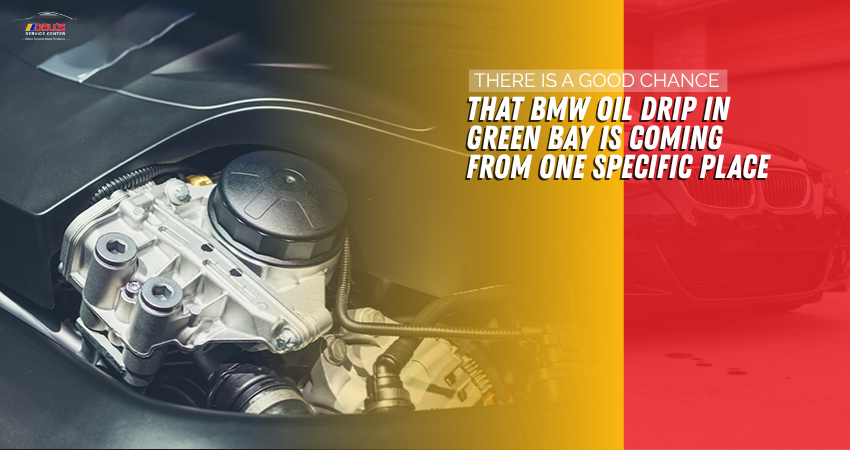

The oil filter housing on BMW N-series inline-six engines is mounted toward the front of the engine block. It contains the oil filter element, the oil cooler thermostat, and provides the connection point for oil cooler lines. The rubber O-ring gasket that seals it to the engine block is exposed to constant heat cycling and oil immersion.
In Green Bay’s climate — where temperatures routinely drop below zero in January and February before reaching operating temperature during the morning commute on Webster Avenue — the cold-start thermal shock compresses the rubber faster than it would in milder markets. Most gasket failures on Green Bay BMWs occur between 60,000 and 90,000 miles, though vehicles with frequent short-trip driving in harsh winters may see earlier failures. Schedule a BMW oil leak inspection at Dell’s Service Center in Green Bay.

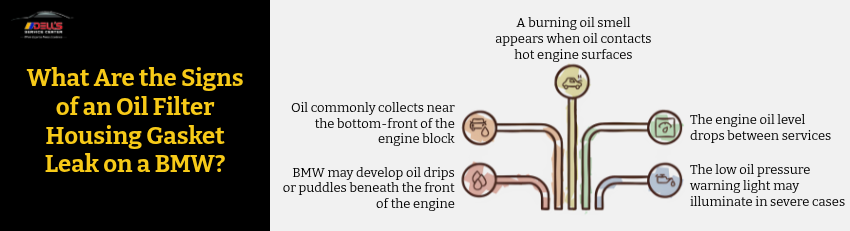

What are the signs of an oil filter housing gasket leak on a BMW?
The most recognizable sign is an oil drip or puddle beneath the front of the engine after the vehicle has been parked — the kind of mark that shows up on a garage floor in Howard or Ashwaubenon after a cold overnight. The drip collects at the bottom-front of the engine block where the housing sits.
A burning oil smell when the engine is warm — created as oil contacts the exhaust manifold or nearby hot surfaces — accompanies active leaks. The oil level on the dipstick drops between services, and in neglected cases, the low oil pressure warning light may illuminate during an I-43 highway run. Contact Dell’s Service Center in Green Bay to schedule your BMW leak diagnosis.
Can the BMW oil filter housing itself crack, and how is this different from a gasket leak?
Yes — and this distinction changes the repair. The oil filter housing on BMW N52 and N54 engines is made of plastic, which becomes brittle over time and with the sustained thermal cycling that Green Bay winters produce. Hairline cracks in the housing body produce an external oil leak visually similar to a gasket leak but require full housing replacement rather than just a new O-ring.
Attempting to replace only the gasket on a cracked housing means the oil leak persists immediately after reassembly. Dell’s Service Center distinguishes between the two failure modes during inspection before beginning work.
What else should be inspected during this BMW repair in Green Bay?
When the oil filter housing area is exposed for the gasket or housing replacement, the drive belt directly below is visible and accessible. Oil contamination from the housing leak frequently drips onto the belt, causing rubber degradation in Green Bay’s cold conditions when the belt is least flexible. The alternator, which also sits in the path of oil dripping from the housing leak, should be checked for oil contamination on its cooling vents. Book your BMW oil filter housing repair at Dell’s Service Center in Green Bay.
The oil cooler lines and their fittings at the housing are inspected while the housing is removed. The oil cooler thermostat O-ring is typically replaced as part of the same procedure — a minimal cost addition that prevents a follow-on service call when it fails separately.
Frequently Asked Questions
Q: How much does BMW oil filter housing gasket replacement cost at Dell’s Service Center?
A: Cost varies depending on whether the gasket alone or the full plastic housing requires replacement. Contact Dell’s Service Center at (920) 494-2860 after the inspection for a specific estimate that reflects your vehicle’s actual condition.
Q: Which BMW models are most commonly affected by oil filter housing gasket failure?
A: The N52, N54, and N55 inline-six engines are the most common. These are found in the 3, 4, 5, and 6 Series BMWs as well as the X3 and X5 depending on model year. Dell’s Service Center can confirm whether your specific model is in the commonly affected group.
Q: How long does the oil filter housing gasket repair take at Dell’s Service Center?
A: A gasket replacement typically takes two to three hours. If the housing requires replacement, add time for parts procurement — contact Dell’s to confirm parts availability before scheduling.
Q: Does Dell’s Service Center service other European brands besides BMW?
A: Yes — Dell’s Service Center services Mercedes, Audi, Volkswagen, and other European brands alongside BMW. Contact the shop at 840 VanDerPerren Way in Green Bay to confirm service availability for your specific vehicle.
